Printing jargon

Printing jargon

Printing colourfulness

Colourfulness is described by A/B, which means that A and B depict front and back printing page
For example:

  • 1/1 – double-sided monochromatic printing
  • 2/0 – double-sided two colours
  • 4/4 – CMYK – double-sided full-coloured printing etc.
  • 5/5 – CMYK + 5th colour, e.g. PANTONE

Choice of printing colours

  • printing with spot colour (type according to the pattern book Pantone)
  • printing CMYK (full-coloured printing) – colourful scale is created by a combination of 4 basic colours
    C – Cyan (azure), M – Magenta (purple), Y – Yellow (yellow), K – Key (key/black)

Format

In calculation, please, distinguish the final format from the printing format:
For example: leaflet A5= A4 folded into the final result A5= A5 folded into the final result A6 etc.

Typometrical system

Didot point system

  • 1 point = 0,3759 mm
  • 12 points = 1 cicero
  • 1 cicero = 4,513 mm

Bindings

limp binding - V1, V2, V3, V4
semi-solid binding - V5, V6
solid binding - V7, V8

  • V1 – saddle-stitching (catalogues, notebooks…
  • V2 – perfect binding (brochures with more than……sheets
  • V3 – needle binding + edge sealing
  • V4 – thread-sealing, needle brochures binding
  • V5 – semi-solid binding
  • V6 – children’s puzzles (folding picture-books)
  • V7 – soft-cover book production, e.g. half-bound
  • V8 – hard-cover book production, linen, files covered with one piece of book cloth

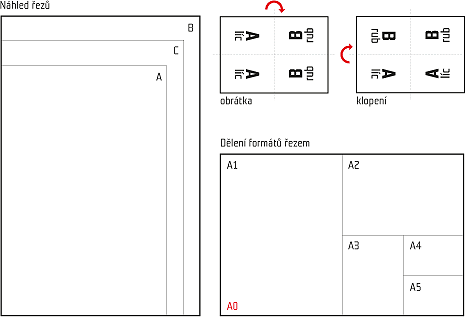

Size of standard lines of paper formats

A (mm) C (mm) B (mm)
0 841 x 1189 917 x 1297 1000 x 1414
1 594 x 841 648 x 917 707 x 1000
2 420 x 594 458 x 648 500 x 707
3 297 x 420 324 x 458 353 x 500
4 210 x 297 229 x 324 250 x 353
5 148 x 210 162 x 229 176 x 250
6 105 x 148 114 x 162 125 x 176
7 74 x 105 81 x 114 88 x 125
8 52 x 74 57 x 81 62 x 88
9 37 x 52 40 x 57 44 x 62
10 26 x 37 28 x 40 31 x 44

paper formats

Paper thickness

kind of paper shine (mm) mat (mm) 100 sheets (cm) 1000 sheets (cm))
offset 80g/m2 0,10 1 10
offset 120g/m2 0,16 1,6 16
offset 150g/m2 0,16 1,6 16
offset 190g/m2 0,22 2 22
chalk 80g/m2 0,06 0,07 0,6 6
chalk 115g/m2 0,09 0,10 0,9 9
chalk 135g/m2 0,11 0,12 1 10
chalk 150g/m2 0,12 0,14 1,2 12
chalk 200g/m2 0,15 0,18 1,5 15
chalk 250g/m2 0,20 0,23 2,2 22
chalk 300g/m2 0,23 0,30 3 30
glass sheet board 250g/m2 0,29 2,9 29
glass sheet board 300g/m2 0,37 3,7 37
glass sheet board 350g/m2 0,42 4,2 42
glass sheet board 500g/m2
carton 240g/m2 0,26 2,6 26

(circa,according to supplier)

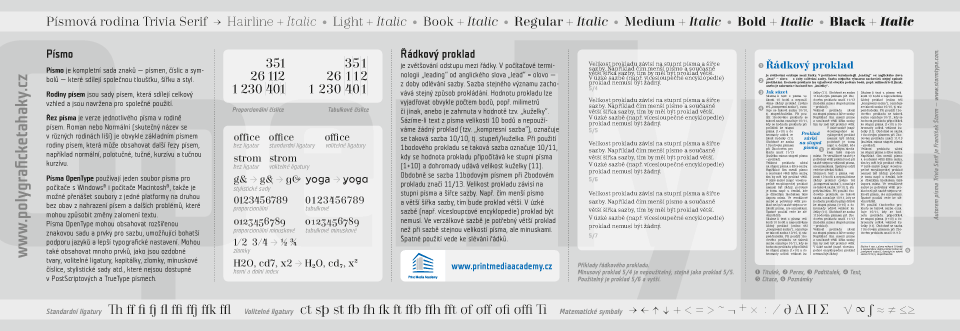

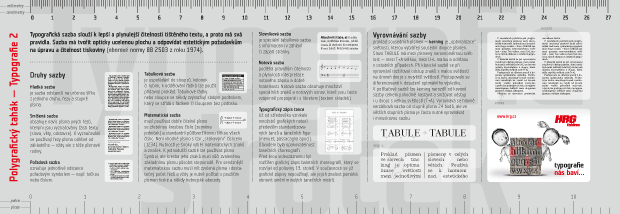

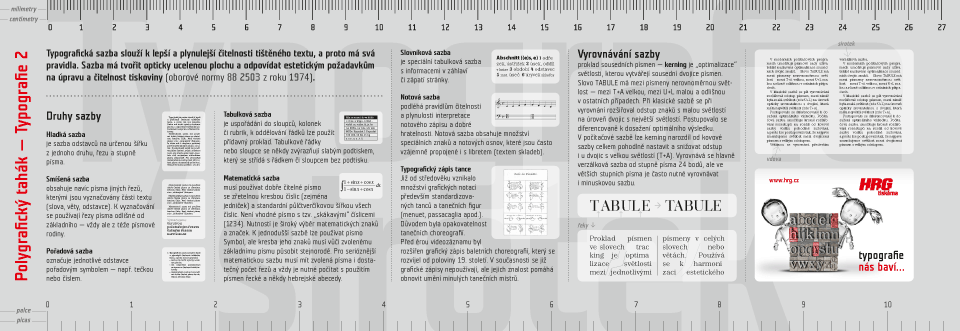

Edition of printing cheat sheets - Typography 1

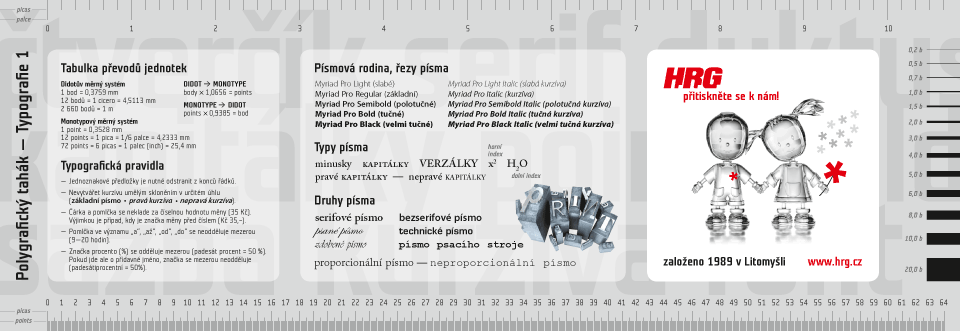

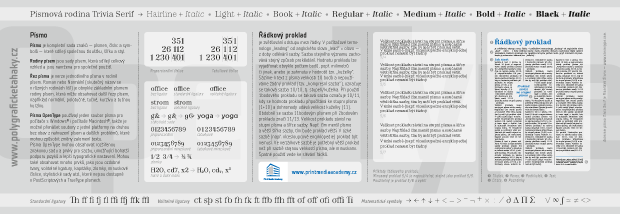

Edition of printing cheat sheets - Typography 1 (front)

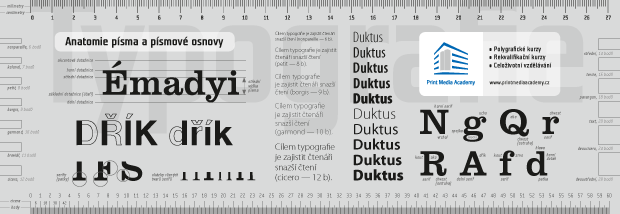

Edition of printing cheat sheets - Typography 1 (back)

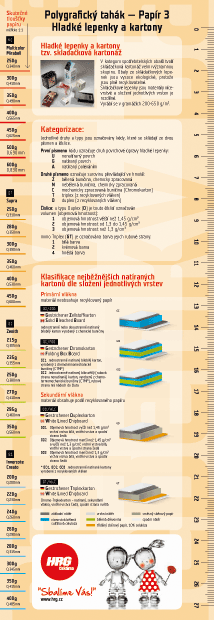

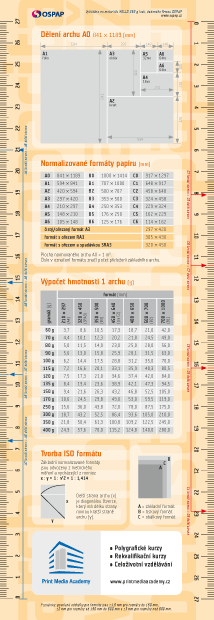

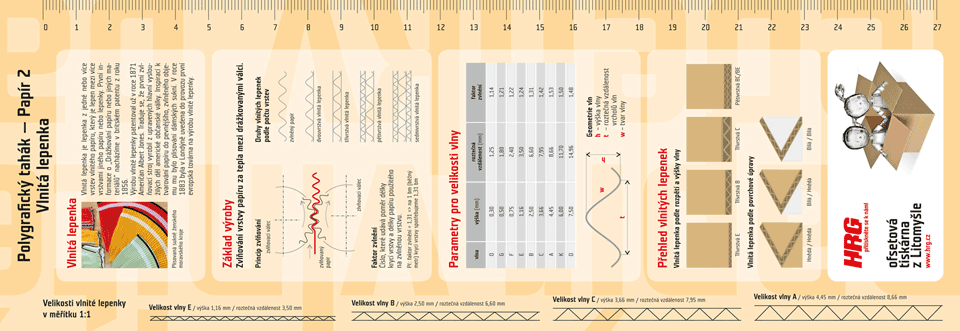

Edition of printing cheat sheets - Paper 1

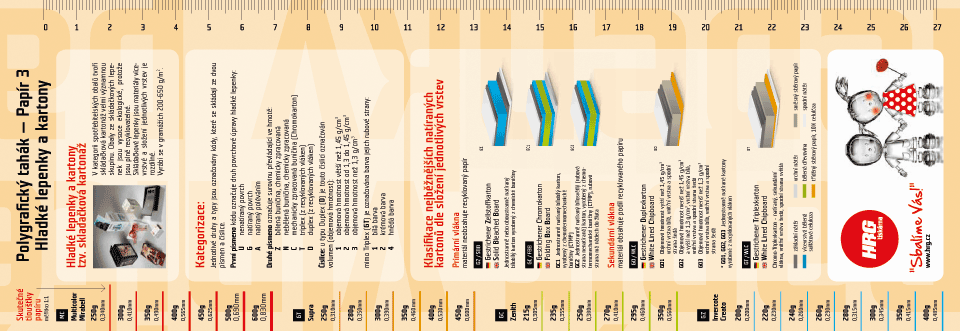

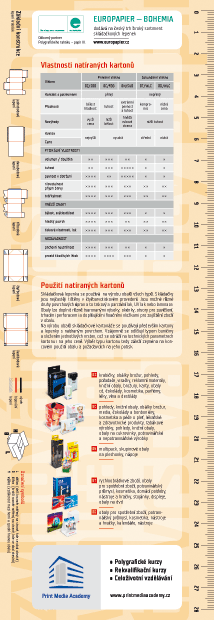

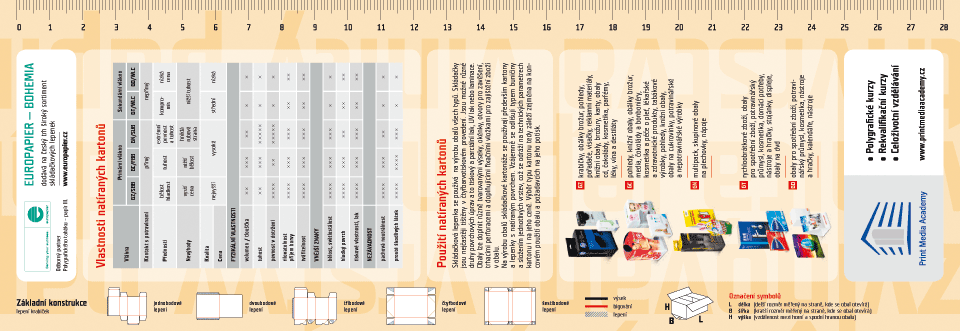

Edition of printing cheat sheets - Paper 1 (front) Edition of printing cheat sheets - Paper 1 (back)

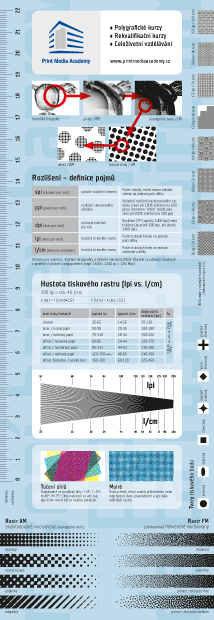

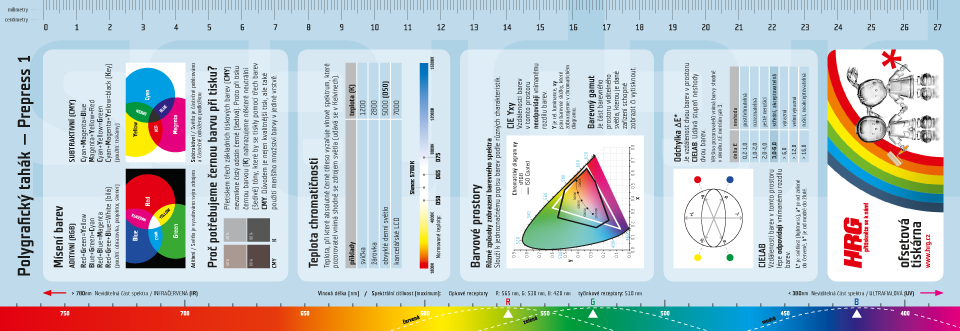

Edition of printing cheat sheets - Prepress 1

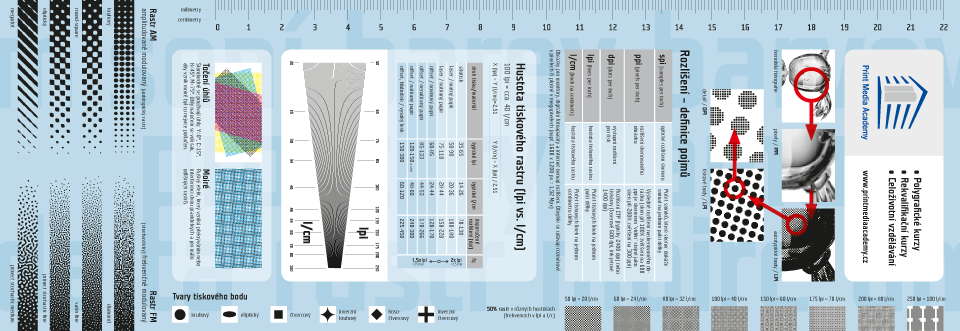

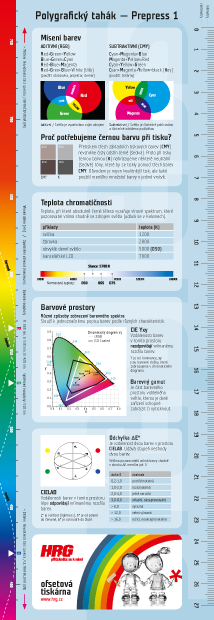

Edition of printing cheat sheets - Prepress 1 (front) Edition of printing cheat sheets - Prepress 1 (back)

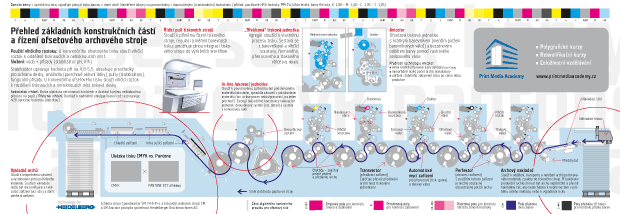

Edition of printing cheat sheets – Offset printing 1

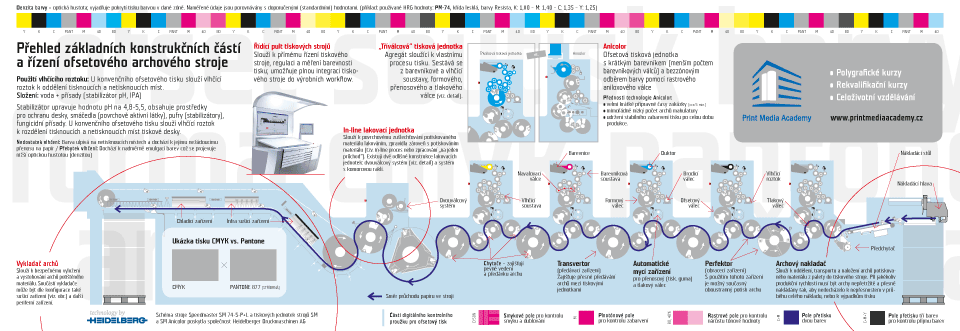

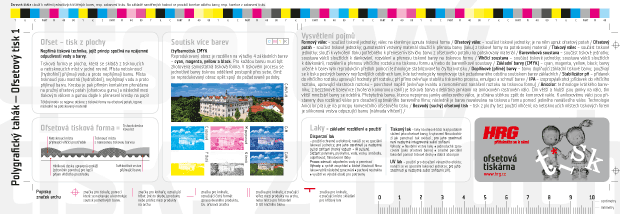

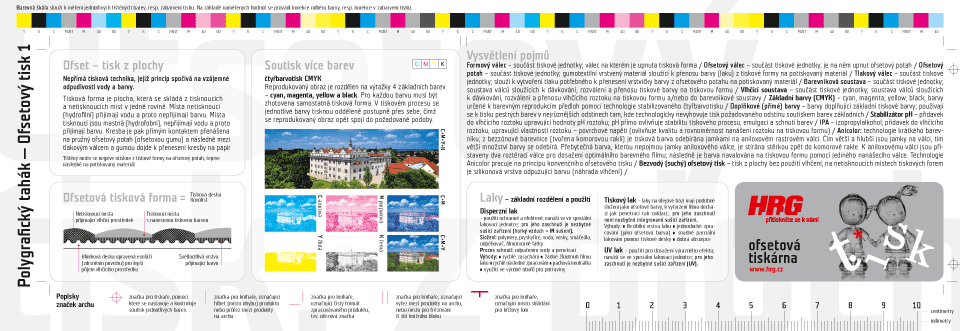

Edition of printing cheat sheets – Offset printing 1 (front)

Edition of printing cheat sheets – Offset printing 1 (back)

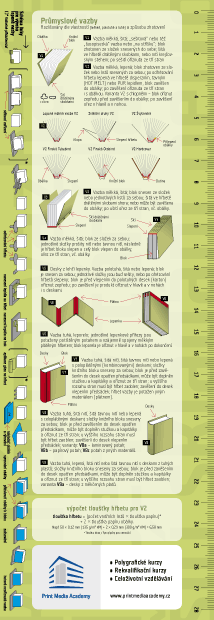

Printing drawing cards – Completing elaboration

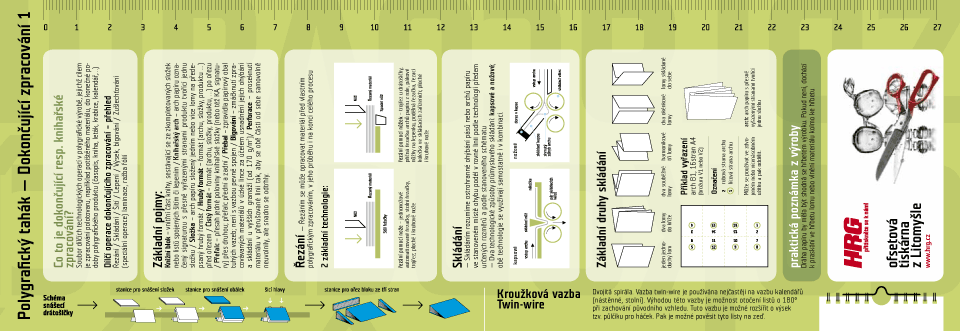

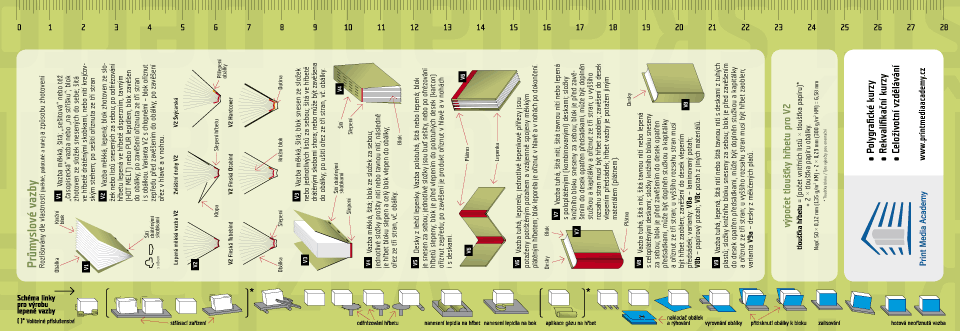

Printing drawing cards – Completing elaboration (front) Printing drawing cards – Completing elaboration (back)

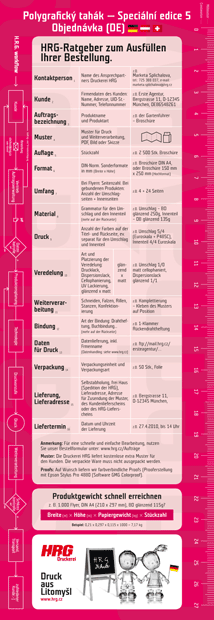

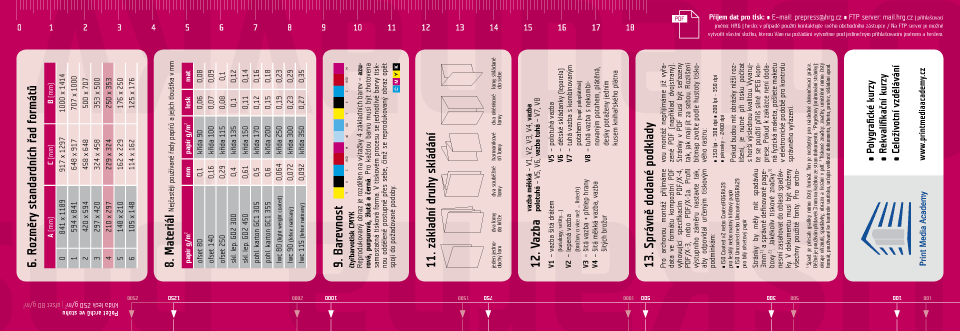

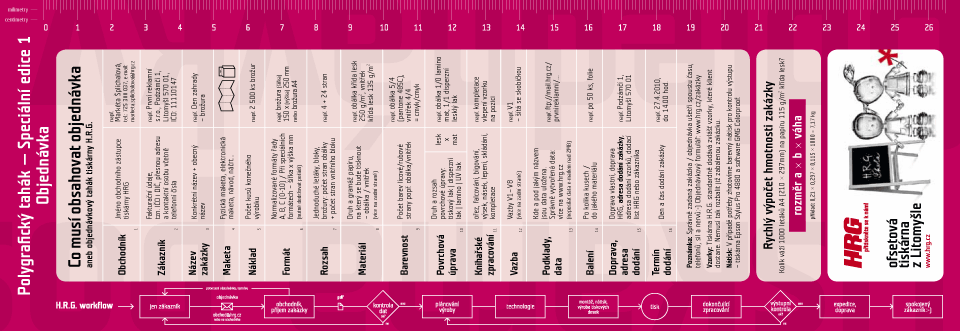

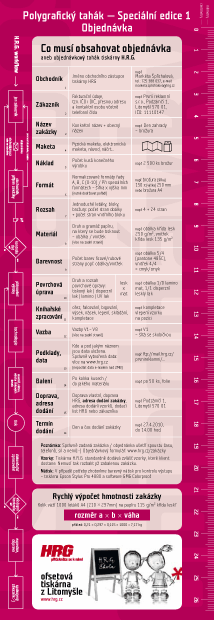

Printing drawing cards – Order

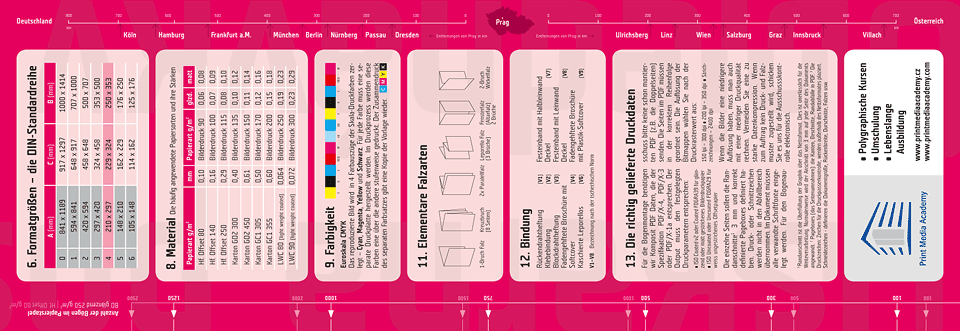

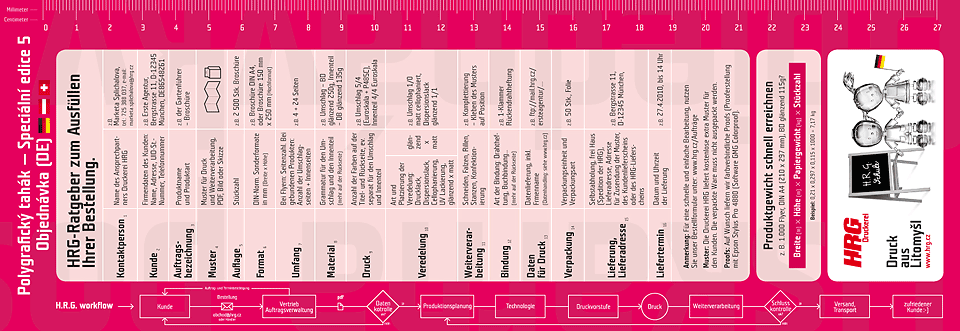

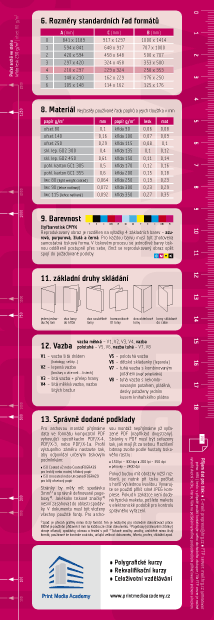

Printing drawing cards – Order (front) Printing drawing cards – Order (back)

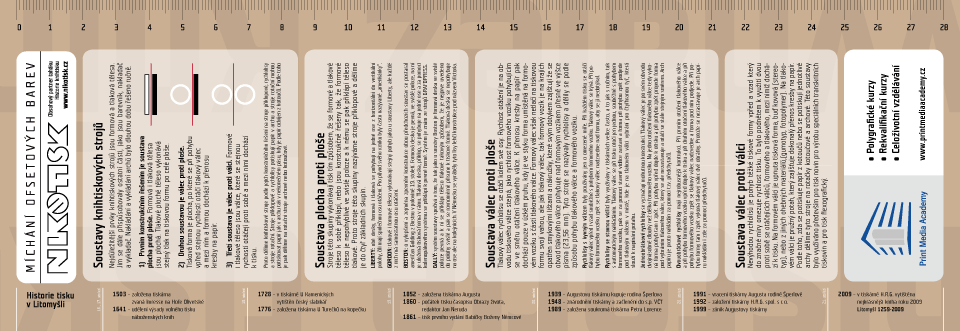

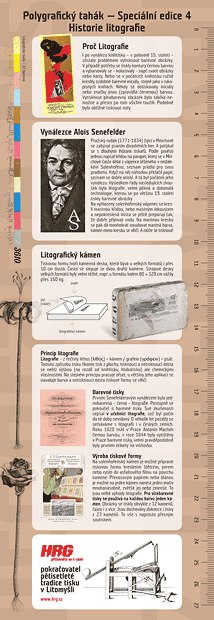

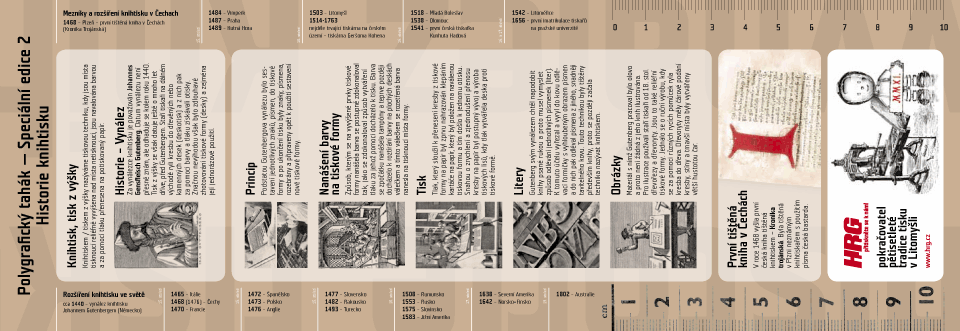

Printing drawing cards – Printing history

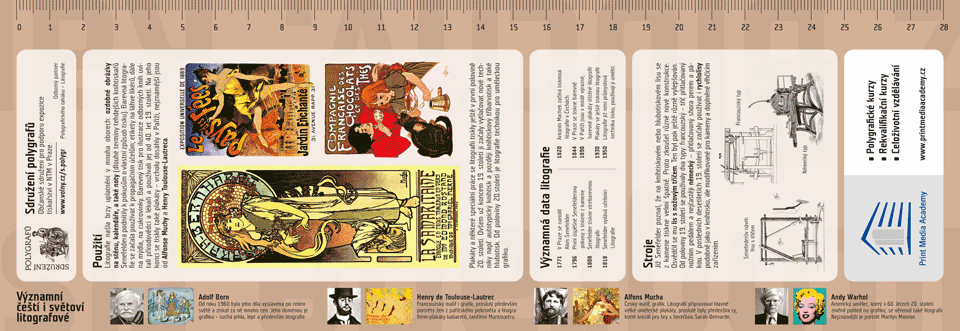

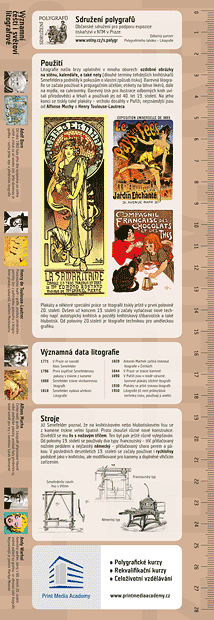

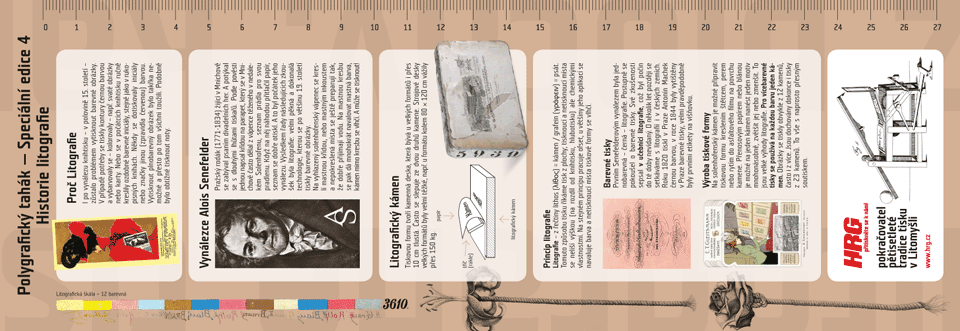

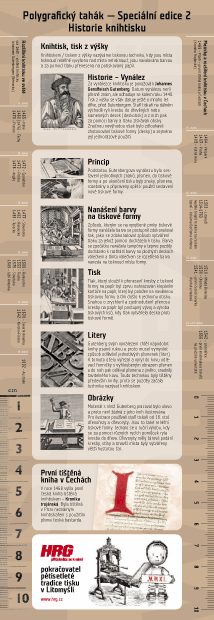

Printing drawing cards – Printing history (front) Printing drawing cards – Printing history (back)

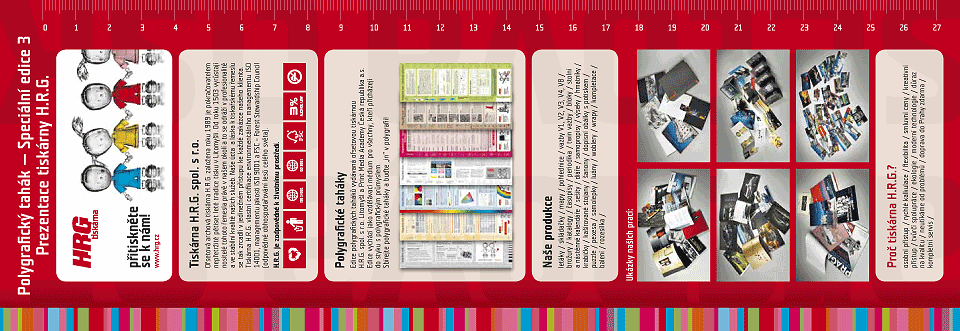

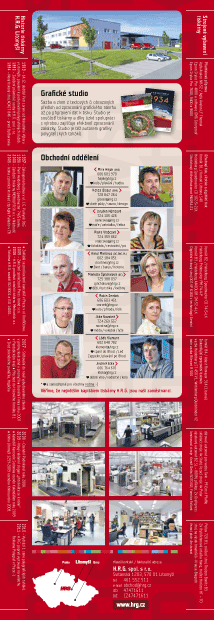

Polygrafický tahák – Prezentace tiskárny H.R.G.

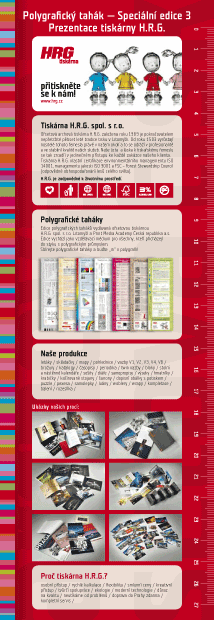

Polygrafický tahák – Prezentace tiskárny H.R.G. (přední) Polygrafický tahák – Prezentace tiskárny H.R.G. (zadní)
